API Explorer ​

The API Explorer lets you test ApostropheCMS REST API endpoints directly in your browser with real authentication. Connect to your local development server or a live instance to experiment with requests and see actual responses.

When to Use the Explorer vs Documentation ​

Use the API Explorer when you want to:

  • Test endpoints with your actual project data
  • Experiment with query parameters and request bodies
  • Validate authentication configuration
  • Generate curl commands for debugging
  • Quickly verify an endpoint's behavior

Use the written API documentation when you want to:

  • Learn API patterns and best practices
  • Understand field formats and data structures
  • Copy code examples into your application
  • Read detailed explanations of endpoints
  • Work offline or on mobile

💡 Testing with Localhost: This explorer can connect to a project running at localhost:3000 on your workstation to test standard API routes. You can test with API key or bearer token authentication, but not session cookies.

Before you start ​

To use this page as an interactive testing environment:

  1. Start your Apostrophe project

    bash
    npm run dev
# or
node app

    Make sure it is reachable at:

    • http://localhost:3000 (default ApostropheCMS dev port)

  2. Scroll to the server URL in the spec

    In the sidebar, the Interactive Explorer is marked with an icon. In the Swagger UI, you will find the Server dropdown near the top. It should show something like:

    • http://localhost:3000

  3. Click the Authorize button

    • See more below about authorization steps.

Step-by-step: Authorize and run your first request ​

Swagger UI will happily send anonymous requests, but most Apostrophe endpoints require authentication.

Follow these steps carefully:

  1. Click the green "Authorize" button

  2. Choose an auth method

    The dialog lists three security schemes.

    • ApiKeyAuth
    • BearerAuth
    • SessionAuth

  3. Recommended: start with API key auth

    • In your project, typically in the modules/@apostrophecms/express/index.js file, add an API key:
    js
    export default {
  options: {
    session: {
      secret: 'myProjectSecret'
    },
    apiKeys: {
      mysecretapikey: {
        role: 'admin'
      }
    }
  }
};
    • In the Authorize dialog of the explorer, scroll up to find the API key entry.
    • Paste your API key into the value field - in this example, mysecretapikey.
    • Click Authorize.
    • Then click Close at the bottom of the dialog.

NOTE

You will not get any message regarding the validity of the key. If your endpoint requests fail with a 404 error, you likely entered the key wrong. Logout from the API key authorization section and reenter the key.

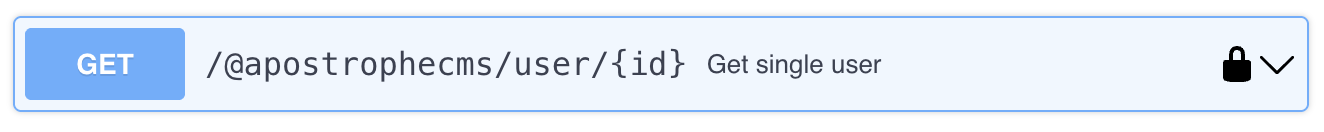

  1. Try a simple GET requestThe 'Get Users' GET endpoint in the Swagger UI

    • Expand a simple GET endpoint (for example, the first "Users" route).
    • Click the route to expand it
    • Click Try it out
    • Change any of the parameters if desired
    • Click Execute
    • Check the Response section below the request:
      • Status 200 or 201 = success
      • Status 401, 403 or 404 = auth problem; double-check your API key.

Alternative: Bearer token via login route (more steps) ​

If you prefer to log in with a username/password instead of using an API key, you can:

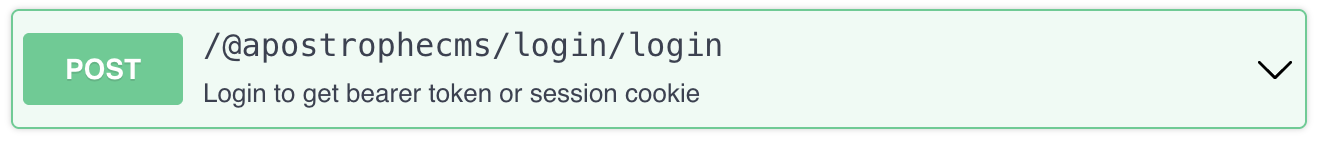

  1. Find the login routeThe Swagger UI POST login route endpoint selector

    • In the explorer, look for the login endpoint (POST with /@apostrophecms/login/login).
    • Expand that operation.

  2. Send a login request

    • Click Try it out.
    • In the request body, edit the username and password values.
    • Click Execute.

  3. Copy the token from the response

    • In the Responses, scroll down to the 200 response.
    • Manually copy the token value, not including the quotes. The copy button will copy both the key and value.

  4. Configure Bearer auth in Swagger UI

    • Click the Authorize button at the top of the Swagger UI.
    • Find the BearerAuth input.
    • Paste only the token value into the field (Swagger UI will add Bearer for you).
    • Click Authorize, then Close.

  5. Try a simple GET requestThe 'Get Users' GET endpoint in the Swagger UI

    • Expand a simple GET endpoint (for example, the first "Users" route).
    • Click the route to expand it
    • Click Try it out
    • Change any of the parameters if desired
    • Click Execute
    • Check the Response section below the request:
      • Status 200 or 201 = success
      • Status 401, 403 or 404 = auth problem; double-check your token.

ApostropheCMS typically uses a session cookie (for example, project-shortname.sid) when you log into the admin UI. The online Swagger explorer cannot reuse that login, because:

  • The in-documentation Swagger UI runs in your browser as a separate web app.
  • It cannot safely or portably access cookies from another origin.
  • Even if it could, CORS rules usually block cross-site cookie usage.

Because of this, you cannot use the "Authorize" dialog to test "I'm logged into the admin UI" style session behavior. For cookie-based flows:

  • Download the OpenAPI spec file repo and set it up locally
  • Use an API client like Postman/Insomnia and configure cookie handling there.

The interactive explorer on this page is intentionally focused on header-based authentication: API keys and bearer tokens.

📽 Interactive Explorer ​

Below is the full Swagger UI. Once your server is running and you follow the authorization instructions, use Try it out → Execute in each endpoint to test.

Need More Detail? ​

The API Explorer shows you what each endpoint does, but for deeper understanding:

Testing Against Your Own Site ​

For testing against deployed sites or more advanced workflows:

Quick Start with Postman

Fork our pre-configured API collection to get started immediately:

Run In Postman

The Postman collection includes all endpoints with example requests and environment variables for easy configuration.

NOTE

This collection covers the core ApostropheCMS API. As you add custom piece types to your project, you'll need to add corresponding endpoints to your forked collection. See the Piece Type REST API documentation for details on the endpoints available for your custom types.

Manual Setup

Alternatively, download and configure manually:

  1. Download: Get our OpenAPI specification or the full repo.
  2. Import: Load it into your preferred API client (or use the repo locally)
  3. Configure: Set your server URL and authentication token
    • Server URL (change https://your-site.com to your actual domain)
    • Session cookie name (change project-shortname.sid to yourproject.sid)
  4. Test: Make live API calls to your ApostropheCMS instance, either locally or your hosted site

About This Reference ​

This interactive documentation is generated from our OpenAPI specification. You can:

  • Test endpoints live: Make real API calls to your locally running project (with authentication)
  • View request/response examples: See exactly what data to send and expect
  • Understand schemas: Explore all data models and field requirements
  • Copy code samples: Get ready-to-use code

For more guidance, see our apostrophecms-openapi repo.
