box

The box field is a unique field that provides a tailored UX for defining values associated with the CSS box-model, such as margin, padding, and border-width.

Module field definition

padding: {
  label: 'Container padding',
  type: 'box',
  min: -3,
  max: 50,
  step: 2,
  def: {
    top: 20,
    right: -2,
    bottom: 0
    left: 30
  }
}

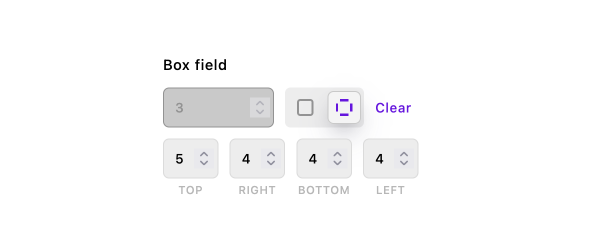

Box Field UI

The UI of the box field allows you to edit all values uniformly or each individually.

Use in templates

The value of a box field is always an object with top, right, bottom, left properties. All property values are stored as numbers, any omitted values are made null. You can pull out each value in your template like

<button
  {% if data.piece.margin.left %}
    style="margin-left: {{ data.piece.margin.left }}px;"
  {% endif %}
>
  I might have a left margin
</button>

toCss helper function

There is also a helper function that will return a string of CSS rules.

Parameter	Type	Default	Description
value	Object	n/a	The box field value
property	String	n/a	The CSS property to assign values
unit	String	'px'	The CSS unit

<button style="{{ apos.boxField.toCss( data.piece.margin, 'margin', 'em') }}">
  I might have margins
</button>

Settings

Required

Property	Type	Default	Description
label	String	n/a	Sets the visible label for the field in the UI

Optional

Property	Type	Default	Description
help	String	n/a	Help text for the content editor
def	Object	{  top: null,  right: null,  bottom: null,  left: null }	The default value. Must be an object with keys top, right, bottom, left. Each value must be a number
htmlHelp	String	n/a	Help text with support for HTML markup
if	Object	{}	Conditions to meet before the field is active. See the guide for details.
requiredIf	Object	{}	Conditions to meet before the field is required. See the guide for details.
hidden	Boolean	false	If true, the field is hidden
max	Number	n/a	The maximum allowable value for any box property
min	Number	n/a	The minimum allowable value for any box property
step	Number	n/a	The default increment when using the input's arrow buttons or keyboard
required	Boolean	false	If true, the field is mandatory
readOnly	Boolean	false	If true, prevents the user from editing the field value
